ORCOTAPE OT-40N 2

Producer: ORCON

Product code: ORCON_OT40N_260

Please contact our sales team for more informaction

Delivery: 5-10 days

If you wish in-store pickup, please contact our Customer Service Office in advance
order@semicon.com.pl or tel.: +48 22 615-83-40

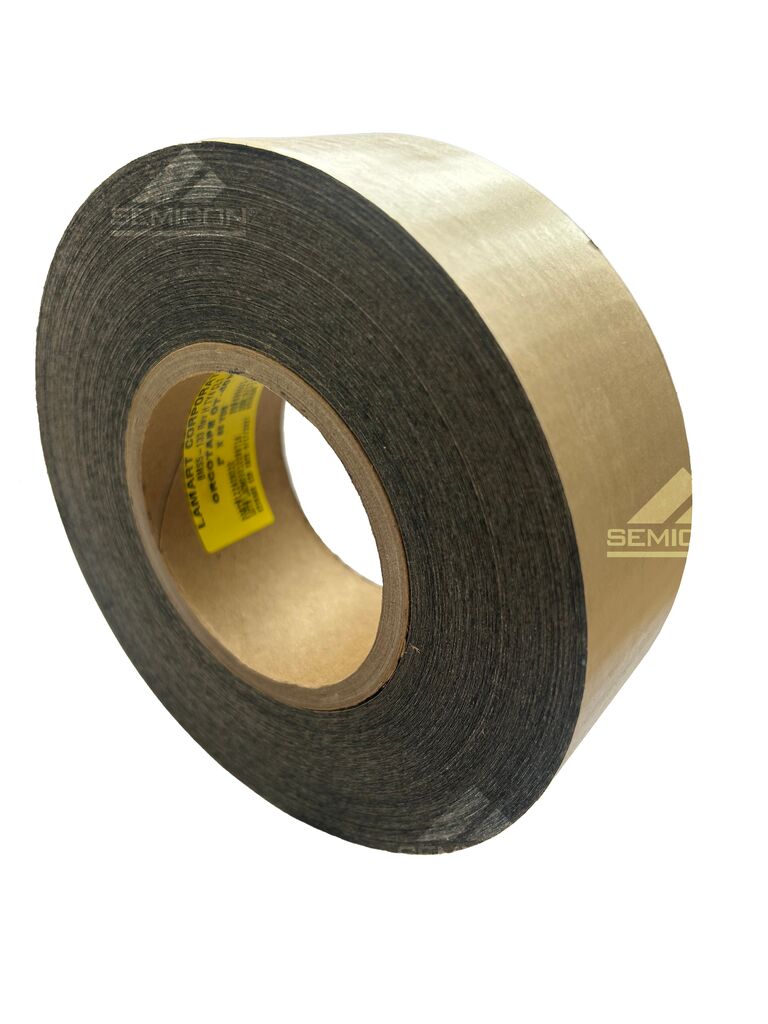

ORCOTAPE® OT-40N is a lightweight double-sided pressure-sensitive reinforced polyester tape with differential tack. This Product meets Boeing Specification BMS5-133. It is used to adhere aircraft floor coverings such as carpet, padding and galley mats to aircraft flooring. Leaves no residue when removed from aircraft floor surface. Meets the latest EU REACH, US EPA and Boeing environmental safety requirements.

PROPERTIES	TEST METHOD	SPECIFICATION
COLOR		Side 1: Dark Gray Side 2: Black
WEIGHT	Fed Std 191, Method 5041	5.0 oz/sq.yd, max 4.5 oz/sq.yd, typical
PEEL STRENGTH	BMS5-133, 180º Peel - Aluminum Side 1: Dark Gray Side 2: Black	2.0 lbs/inch, min 8.8 N/25 mm, min 5.0 lbs/inch, min 21.8 N/25 mm, min
LAP SHEAR STRENGTH	BMS5-133 Side 2: Black	30 lbs/inch, min 132 N/25 mm, min
TENSILE STRENGTH	BMS5-133	20 lbs/inch, min 88 N/25 mm, min
FLAMMABILITY, TAPE ONLY	BSS7230, Method F2; FAR Part 25 App. F Part I: Vertical Burn Test (12 secs)	Pass
SPECIFICATIONS	FAR 25.853, FAR 25.855; BMS5-133 Type IV, Class 1; BAMS 535-002
ENVIRONMENTAL REGULATIONS COMPLIANCE	EU REACH, US EPA; Boeing BDM-1712, RoHS
PACKAGING	Standard roll length Standard width	60 yards (55 meters) 2 and 3 inches (5.1 and 7.6 cm) Custom widths available on request

Side 1, the dark gray side, is designed to adhere to the floor. Side 2, the black side (with release liner), is designed to adhere to the floor covering (carpet) backing.
